MC10H104MELG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE AND 4CH 2-INP 16SOEIAJ
- CategoryLogic - Gates and Inverters
- Datasheet MC10H104MELG Datasheet
-
ECAD Model
- Share
In Stock: 6,783
Can ship immediately
Pricing:
- 1$2.35
Quote It
Technical Details
- Series:10H
- Package:Bulk
- Part Status:Obsolete
- Logic Type:AND Gate
- Number of Circuits:4
- Number of Inputs:2
- Features:1 of 4 AND/NAND Output
- Voltage - Supply:-4.94V ~ -5.46V
- Current - Quiescent (Max):-
- Current - Output High, Low:50mA, 50mA
- Logic Level - Low:-1.48V
- Logic Level - High:-1.13V
- Max Propagation Delay @ V, Max CL:1.75ns @ -5.2V, -
- Operating Temperature:0°C ~ 75°C
- Mounting Type:Surface Mount
- Supplier Device Package:16-SOEIAJ
- Package / Case:16-SOIC (0.209", 5.30mm Width)
Related Products

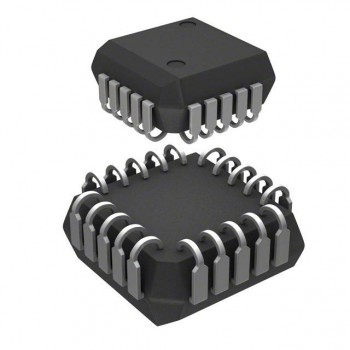

QUAD 2-INPUT NOR GATE
- 1: $2.35000

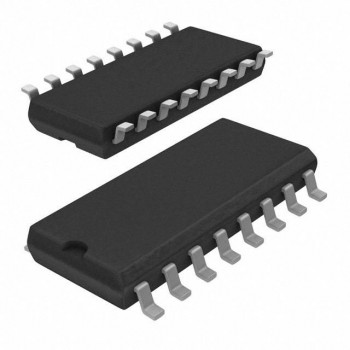

NAND GATE, TTL/H/L SERIES, TTL
