NC7SVL08L6X
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE AND 1CH 2-INP 6MICROPAK
- CategoryLogic - Gates and Inverters
- Datasheet NC7SVL08L6X Datasheet
-
ECAD Model
- Share
In Stock: 420,161
Can ship immediately
Pricing:
- 1$0.13
- 5,000$0.13
Quote It
Technical Details
- Series:7SVL
- Package:Bulk
- Part Status:Active
- Logic Type:AND Gate
- Number of Circuits:1
- Number of Inputs:2
- Features:-
- Voltage - Supply:0.9V ~ 3.6V
- Current - Quiescent (Max):900 nA
- Current - Output High, Low:24mA, 24mA
- Logic Level - Low:0.7V ~ 0.8V
- Logic Level - High:0.9V ~ 1.5V
- Max Propagation Delay @ V, Max CL:3.5ns @ 3V, 30pF
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Supplier Device Package:6-MicroPak
- Package / Case:6-UFDFN
Related Products

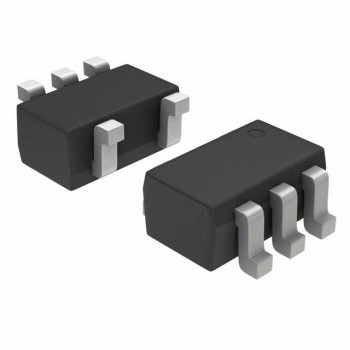

IC INVERTER OD 1CH 1-INP SC88A
