74HC20PW118
Rochester Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE NAND 2CH 4-INP 14TSSOP
- CategoryLogic - Gates and Inverters
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
- 1$0.07
Quote It
Technical Details
- Series:74HC
- Package:Bulk
- Part Status:Active
- Logic Type:NAND Gate
- Number of Circuits:2
- Number of Inputs:4
- Features:-
- Voltage - Supply:2V ~ 6V
- Current - Quiescent (Max):2 µA
- Current - Output High, Low:5.2mA, 5.2mA
- Logic Level - Low:0.5V ~ 1.8V
- Logic Level - High:1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL:15ns @ 6V, 50pF
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Supplier Device Package:14-TSSOP
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
Related Products
NOW NEXPERIA 74LVC3G07GT - BUFFE
- 1: $0.07000
IC GATE NOR 2CH 4-INP 14SOIC
- 1: $0.07000
IC INVERT SCHMITT 1CH 1IN 5TSSOP
- 1: $0.08000
IC GATE NAND 3CH 3-INP 14SO
- 1: $0.08000
IC GATE NOR 3CH 14SO
- 1: $0.08000

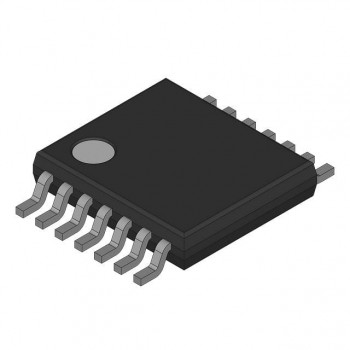

IC GATE XOR 4CH 2-INP 14TSSOP
