- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ADC 14BIT SAR 16QFN
- CategoryData Acquisition - Analog to Digital Converters (ADC)
- Datasheet AK9256NK Datasheet
-
ECAD Model
- Share
In Stock: 431
Can ship immediately
Pricing:
- 1$12.59
- 250$7.82
- 500$7.13
- 750$6.578
- 1,250$6.21
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Number of Bits:14
- Sampling Rate (Per Second):1.17M
- Number of Inputs:2
- Input Type:Differential, Pseudo-Differential
- Data Interface:-
- Configuration:ADC
- Ratio - S/H:ADC:0:1
- Number of A/D Converters:2
- Architecture:SAR
- Reference Type:External
- Voltage - Supply, Analog:3V ~ 3.6V
- Voltage - Supply, Digital:3V ~ 3.6V
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Package / Case:16-VFQFN Exposed Pad
- Supplier Device Package:16-QFN (3x3)
- Mounting Type:Surface Mount
Related Products
IC ADC 10BIT SAR 8DIP
- 1: $8.20000
- 10: $7.40831
- 50: $7.06333
IC ADC 16BIT SIGMA-DELTA 32VQFN
- 1: $8.27000
- 3000: $4.51880
IC ADC 24BIT SIGMA-DELTA 16WQFN
- 1: $8.27000
- 3000: $4.51880
IC ADC 10BIT PIPELINED 28TSSOP
- 1: $8.37000
- 2500: $4.31340
IC ADC 16BIT SIGMA-DELTA 20TSSOP
- 1: $8.44000
- 2000: $3.94680

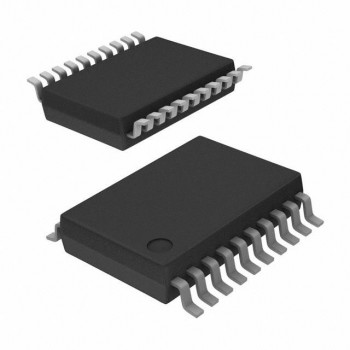

IC ADC 10BIT SAR 20SSOP
- 1: $8.51000
- 10: $7.69056
- 70: $7.33286

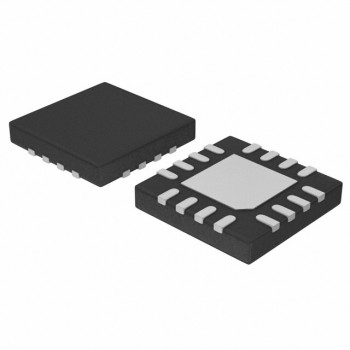

IC ADC 16BIT SAR 16WQFN
