TLV2543IN
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ADC 12BIT SAR 20DIP
- CategoryData Acquisition - Analog to Digital Converters (ADC)
-
ECAD Model
- Share
In Stock: 210
Can ship immediately
Pricing:
- 1$19.53
- 20$17.94565
- 40$17.20167
- 100$15.15607
- 500$13.48243
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Number of Bits:12
- Sampling Rate (Per Second):66k
- Number of Inputs:11
- Input Type:Single Ended
- Data Interface:SPI
- Configuration:MUX-S/H-ADC
- Ratio - S/H:ADC:1:1
- Number of A/D Converters:1
- Architecture:SAR
- Reference Type:External
- Voltage - Supply, Analog:3V ~ 3.6V
- Voltage - Supply, Digital:3V ~ 3.6V
- Features:-
- Operating Temperature:-40°C ~ 85°C
- Package / Case:20-DIP (0.300", 7.62mm)
- Supplier Device Package:20-PDIP
- Mounting Type:Through Hole
Related Products
ADC, PROPRIETARY METHOD, 12 BIT,
- 1: $20.00000
ADC, SUCCESSIVE APPROXIMATION, 1
- 1: $20.07000
- 25: $20.07000
ADC, PROPRIETARY METHOD, 12-BIT
- 1: $20.39000
- 160: $20.39000
12-BIT SAR PARALLEL ADC
- 1: $20.60000
16-BIT SAR ADC, 4 CHANNEL
- 1: $20.61000

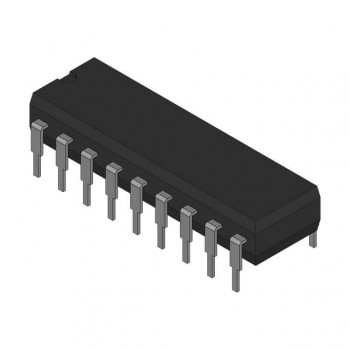

MX7574 UP COMPATIBLE 8 BIT ADC
