CS5531-ASZ
Cirrus Logic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ADC 16BIT SIGMA-DELTA 20SSOP
- CategoryData Acquisition - Analog to Digital Converters (ADC)
- Datasheet CS5531-ASZ Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
- 1$8.68564
- 10$7.81708
- 66$7.12227
- 132$6.42735
- 264$5.90625
- 528$5.3851
- 1,056$4.69025
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Number of Bits:16
- Sampling Rate (Per Second):3.84k
- Number of Inputs:2
- Input Type:Differential
- Data Interface:SPI
- Configuration:MUX-PGA-ADC
- Ratio - S/H:ADC:-
- Number of A/D Converters:1
- Architecture:Sigma-Delta
- Reference Type:External
- Voltage - Supply, Analog:±3V, 0V ~ 5V
- Voltage - Supply, Digital:3V ~ 5V
- Features:PGA, Selectable Address
- Operating Temperature:-40°C ~ 85°C
- Package / Case:20-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:20-SSOP
- Mounting Type:Surface Mount
Related Products

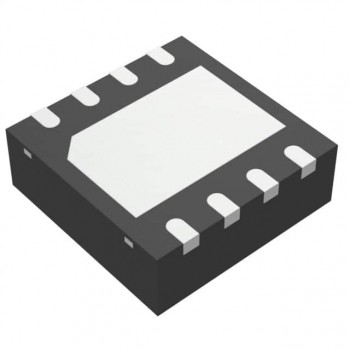

IC ADC 16BIT SAR 8SON
- 1: $9.69936
- 2500: $9.19643

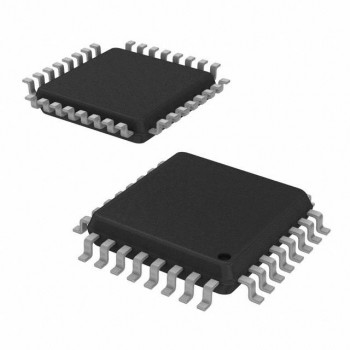

IC ADC 12BIT PIPELINED 32TQFP
