CS5534-ASZR
Cirrus Logic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ADC 24BIT SIGMA-DELTA 24SSOP
- CategoryData Acquisition - Analog to Digital Converters (ADC)
- Datasheet CS5534-ASZR Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$8.79
- 2,000$8.33422
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Number of Bits:24
- Sampling Rate (Per Second):3.84k
- Number of Inputs:4
- Input Type:Differential
- Data Interface:SPI
- Configuration:MUX-PGA-ADC
- Ratio - S/H:ADC:-
- Number of A/D Converters:1
- Architecture:Sigma-Delta
- Reference Type:External
- Voltage - Supply, Analog:±3V, 0V ~ 5V
- Voltage - Supply, Digital:3V ~ 5V
- Features:PGA, Selectable Address
- Operating Temperature:-40°C ~ 85°C
- Package / Case:24-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:24-SSOP
- Mounting Type:Surface Mount
Related Products

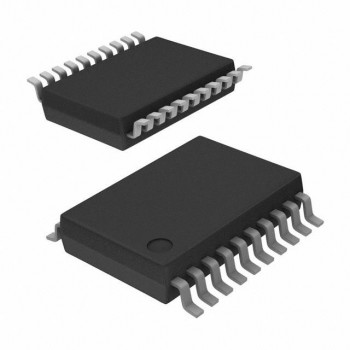

IC ADC 12BIT SAR 20SSOP
- 1: $8.82886
- 70: $7.58500
IC ADC 12BIT SAR 20SSOP
- 1: $8.82886
- 140: $5.67821

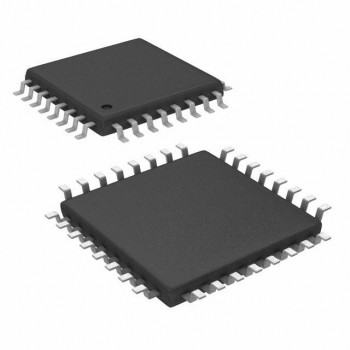

IC ADC 12BIT SAR 32TQFP
