ADS7806U/1K
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC ADC 12BIT SAR 28SOIC
- CategoryData Acquisition - Analog to Digital Converters (ADC)
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Number of Bits:12
- Sampling Rate (Per Second):40k
- Number of Inputs:1
- Input Type:Single Ended
- Data Interface:SPI, Parallel
- Configuration:S/H-ADC
- Ratio - S/H:ADC:1:1
- Number of A/D Converters:1
- Architecture:SAR
- Reference Type:External, Internal
- Voltage - Supply, Analog:5V
- Voltage - Supply, Digital:5V
- Features:-
- Operating Temperature:-40°C ~ 85°C
- Package / Case:28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:28-SOIC
- Mounting Type:Surface Mount
Related Products
IC ADC 16BIT SAR 28SOIC
Call for price
IC ADC 12BIT SAR 20SOIC
Call for price
IC ADC 12BIT SAR 28SOIC
Call for price
IC ADC 12BIT SAR 28SOIC
Call for price
IC ADC 16BIT SAR 28SOIC
Call for price
IC ADC 12BIT SAR 16SOIC
Call for price
IC ADC 16BIT SAR 16SOIC
Call for price
IC ADC 12BIT SAR 8SOIC
Call for price
IC ADC 12BIT SAR 8VSSOP
Call for price

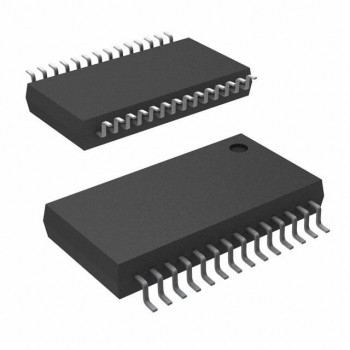

IC ADC 10BIT PIPELINED 28SSOP
