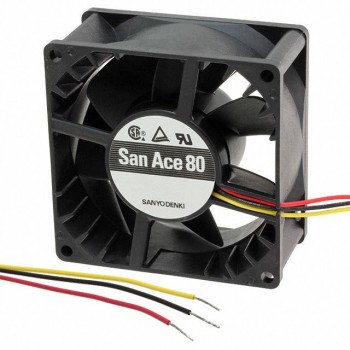

109R0812L4D011
Sanyo Denki- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFAN 80X25MM 12VDC RBLS LOCK
- CategoryDC Brushless Fans (BLDC)
- Datasheet 109R0812L4D011 Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$8.66833
- 120$7.91817
Quote It
Technical Details
- Series:San Ace 80
- Package:Box
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 80mm L x 80mm H
- Width:25.00mm
- Air Flow:23.0 CFM (0.644m³/min)
- Static Pressure:0.059 in H2O (14.7 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Locked Rotor Sensor
- Noise:20.0dB(A)
- Power (Watts):720 mW
- RPM:1850 RPM
- Termination:3 Wire Leads
- Ingress Protection:-
- Operating Temperature:-4 ~ 158°F (-20 ~ 70°C)
- Approval Agency:CSA, TUV, UL
- Weight:0.243 lb (110.22 g)
