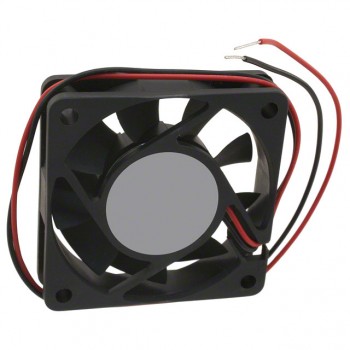

AFB0612HHB
Delta Electronics / Fans
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFAN AXIAL 60X15MM 12VDC WIRE
- CategoryDC Brushless Fans (BLDC)
- Datasheet AFB0612HHB Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$8.946
- 10$8.36513
- 25$7.58698
- 50$7.00336
- 210$6.12794
- 420$5.73887
- 630$5.34979
Quote It
Technical Details
- Series:AFB
- Package:Tray
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 60mm L x 60mm H
- Width:15.00mm
- Air Flow:17.3 CFM (0.484m³/min)
- Static Pressure:0.195 in H2O (48.6 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Locked Rotor Protection
- Noise:35.0dB(A)
- Power (Watts):1.44 W
- RPM:4500 RPM
- Termination:2 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:CE, CSA, UL, VDE
- Weight:0.098 lb (44.45 g)
