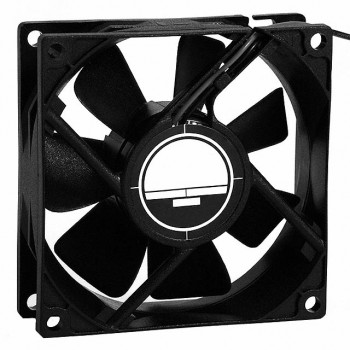

OD8025-12LB10A
Orion Fans
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFAN AXIAL 80X25MM 12VDC WIRE
- CategoryDC Brushless Fans (BLDC)
- Datasheet OD8025-12LB10A Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$9.38088
- 520$9.38088
Quote It
Technical Details
- Series:OD8025
- Package:Bulk
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 80mm L x 80mm H
- Width:25.00mm
- Air Flow:26.0 CFM (0.728m³/min)
- Static Pressure:0.070 in H2O (17.4 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Auto Restart, PWM Control, Speed Sensor (Tach)
- Noise:23.0dB
- Power (Watts):600 mW
- RPM:2100 RPM
- Termination:4 Wire Leads
- Ingress Protection:-
- Operating Temperature:-4 ~ 167°F (-20 ~ 75°C)
- Approval Agency:cURus, TUV
- Weight:0.191 lb (86.64 g)
