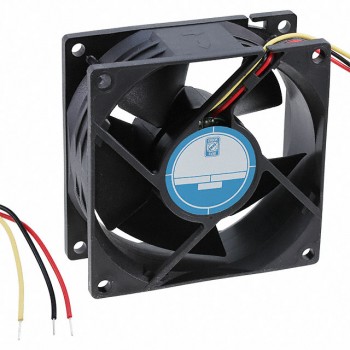

OD8025-12LBIP5501A

Technical Details

• Series:OD8025
• Package:Bulk
• Part Status:Active
• Voltage - Rated:12VDC
• Size / Dimension:Square - 80mm L x 80mm H
• Width:25.00mm
• Air Flow:26.0 CFM (0.728m³/min)
• Static Pressure:0.070 in H2O (17.4 Pa)
• Bearing Type:Ball
• Fan Type:Tubeaxial

• Features:Auto Restart, Speed Sensor (Tach)
• Noise:23.0dB
• Power (Watts):600 mW
• RPM:2100 RPM
• Termination:3 Wire Leads
• Ingress Protection:IP55 - Dust Protected, Water Resistant
• Operating Temperature:-4 ~ 167°F (-20 ~ 75°C)
• Approval Agency:cURus, TUV
• Weight:0.191 lb (86.64 g)
