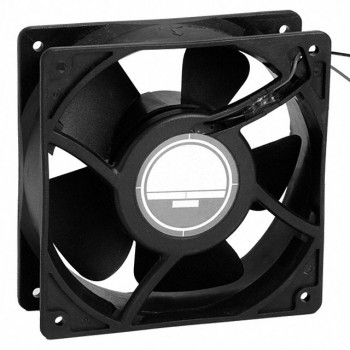

OD1238-12LS02A
Orion Fans
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFAN AXIAL 120X38.5MM 12VDC WIRE
- CategoryDC Brushless Fans (BLDC)
- Datasheet OD1238-12LS02A Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$14.35008
- 520$14.35008
Quote It
Technical Details
- Series:OD1238
- Package:Bulk
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 120mm L x 120mm H
- Width:38.50mm
- Air Flow:73.0 CFM (2.04m³/min)
- Static Pressure:0.130 in H2O (32.4 Pa)
- Bearing Type:Sleeve
- Fan Type:Tubeaxial
- Features:Locked Rotor Sensor
- Noise:33.0dB
- Power (Watts):3 W
- RPM:1950 RPM
- Termination:3 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:cURus, TUV
- Weight:-
Related Products

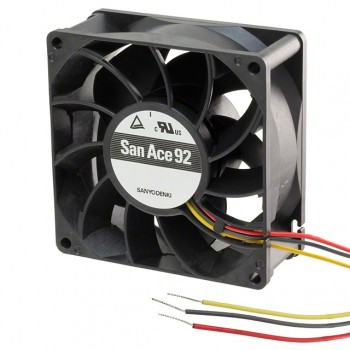

DC AXIAL FAN 92X92X38MM LOCK
