DC1203812J2B-BT0
Wakefield-Vette
- Lifecycle status Active
- RoHS RoHS Compliant

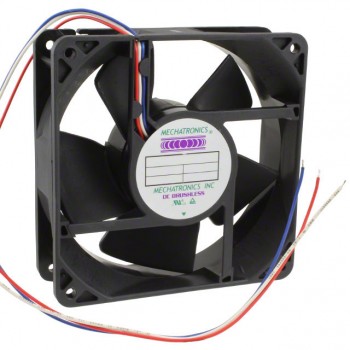

- DescriptionFAN 12VDC 120X38MM 4WIRES
- CategoryDC Brushless Fans (BLDC)
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$14.5025
Quote It
Technical Details
- Series:-
- Package:Box
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 120mm L x 120mm H
- Width:38.00mm
- Air Flow:101.4 CFM (2.84m³/min)
- Static Pressure:0.300 in H2O (74.7 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Noise:38.0dB(A)
- Power (Watts):2.16 W
- RPM:2300 RPM
- Termination:4 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:CE, cURus, TUV
- Weight:0.508 lb (230.42 g)
