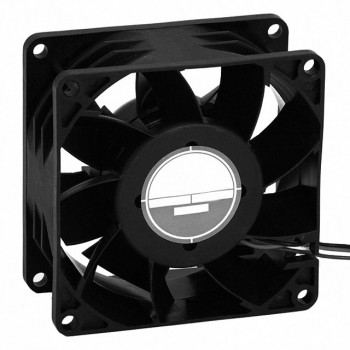

OD8038-12HHB-VXC01A

Technical Details

• Series:OD8038 VA
• Package:Bulk
• Part Status:Active
• Voltage - Rated:12VDC
• Size / Dimension:Square - 80mm L x 80mm H
• Width:38.00mm
• Air Flow:112.0 CFM (3.14m³/min)
• Static Pressure:1.100 in H2O (274.0 Pa)
• Bearing Type:Ball
• Fan Type:Tubeaxial

• Features:Auto Restart, Speed Sensor (Tach)
• Noise:60.0dB
• Power (Watts):22 W
• RPM:7100 RPM
• Termination:3 Wire Leads
• Ingress Protection:-
• Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
• Approval Agency:cURus, TUV
• Weight:-
