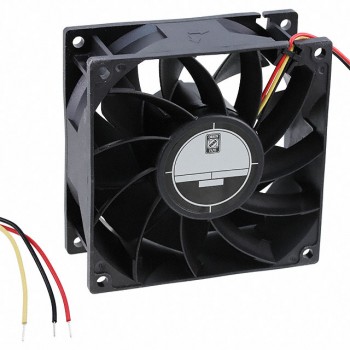

OD9238-24LB-VXC10A

Technical Details

• Series:OD9238 VA
• Package:Bulk
• Part Status:Active
• Voltage - Rated:24VDC
• Size / Dimension:Square - 92.5mm L x 92.5mm H
• Width:38.00mm
• Air Flow:108.0 CFM (3.02m³/min)
• Static Pressure:0.500 in H2O (124.5 Pa)
• Bearing Type:Ball
• Fan Type:Tubeaxial

• Features:Auto Restart, PWM Control, Speed Sensor (Tach)
• Noise:52.0dB
• Power (Watts):8 W
• RPM:4400 RPM
• Termination:4 Wire Leads
• Ingress Protection:-
• Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
• Approval Agency:cURus, TUV
• Weight:-
