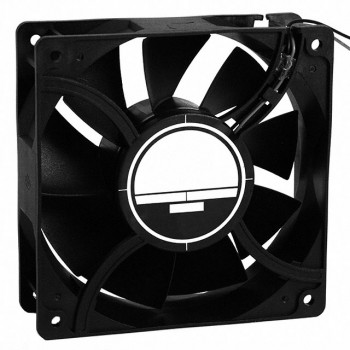

OD1238-12MBXC10A

Technical Details

• Series:OD1238 XC
• Package:Bulk
• Part Status:Active
• Voltage - Rated:12VDC
• Size / Dimension:Square - 120mm L x 120mm H
• Width:38.50mm
• Air Flow:175.0 CFM (4.90m³/min)
• Static Pressure:0.510 in H2O (127.0 Pa)
• Bearing Type:Ball
• Fan Type:Tubeaxial

• Features:Auto Restart, PWM Control, Speed Sensor (Tach)
• Noise:57.0dB
• Power (Watts):18 W
• RPM:3800 RPM
• Termination:4 Wire Leads
• Ingress Protection:-
• Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
• Approval Agency:cURus, TUV
• Weight:-
