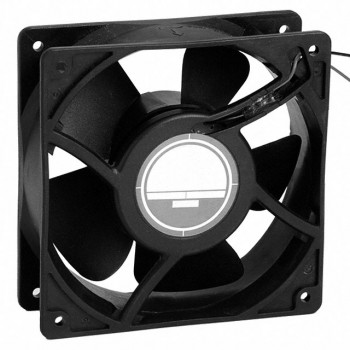

OD1238-12HHBIP68
Orion Fans
- Lifecycle status Active
- RoHS RoHS Compliant
- Description12VDC 120X120X38MM IP68
- CategoryDC Brushless Fans (BLDC)
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$19.93438
Quote It
Technical Details
- Series:OD1238
- Package:Box
- Part Status:Active
- Voltage - Rated:12VDC
- Size / Dimension:Square - 119.5mm L x 119.5mm H
- Width:38.00mm
- Air Flow:136.0 CFM (3.81m³/min)
- Static Pressure:0.560 in H2O (139.5 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Auto Restart
- Noise:48.0dB
- Power (Watts):8.4 W
- RPM:3200 RPM
- Termination:2 Wire Leads
- Ingress Protection:IP68 - Dust Tight, Waterproof
- Operating Temperature:5 ~ 149°F (-15 ~ 65°C)
- Approval Agency:cURus, TUV
- Weight:0.572 lb (259.45 g)
