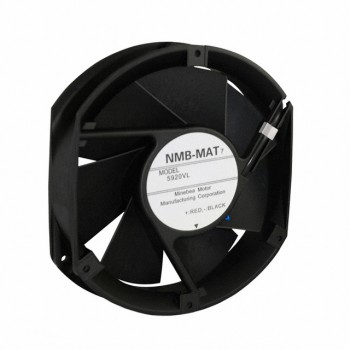

6820PL-04W-B10-D00
NMB Technologies Corp.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFAN AXIAL 172X50.8MM 12VDC WIRE
- CategoryDC Brushless Fans (BLDC)
- Datasheet 6820PL-04W-B10-D00 Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
- 1$52.65367
- 30$52.65367
Quote It
Technical Details
- Series:6820PL
- Package:Bulk
- Part Status:Last Time Buy
- Voltage - Rated:12VDC
- Size / Dimension:Round - 172mm Dia
- Width:50.80mm
- Air Flow:180.0 CFM (5.04m³/min)
- Static Pressure:0.371 in H2O (92.5 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:-
- Noise:50.0dB
- Power (Watts):9.6 W
- RPM:2550 RPM
- Termination:2 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:CE, CSA, UL, VDE
- Weight:1.8 lbs (816.5 g)
