CFM-A225-43-22
CUI Devices
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDC AXIAL FAN, 120 MM SQUARE, 25
- CategoryDC Brushless Fans (BLDC)
- Datasheet CFM-A225-43-22 Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$13.5847
- 100$13.5847
Quote It
Technical Details
- Series:CFM-120
- Package:Tray
- Part Status:Active
- Voltage - Rated:48VDC
- Size / Dimension:Square - 120mm L x 120mm H
- Width:25.40mm
- Air Flow:126.9 CFM (3.55m³/min)
- Static Pressure:0.490 in H2O (122.1 Pa)
- Bearing Type:Ball
- Fan Type:Tubeaxial
- Features:Auto Restart, PWM Control, Speed Sensor (Tach)
- Noise:53.5dB(A)
- Power (Watts):11.04 W
- RPM:4100 RPM
- Termination:4 Wire Leads
- Ingress Protection:-
- Operating Temperature:14 ~ 158°F (-10 ~ 70°C)
- Approval Agency:CE, cURus, TUV
- Weight:0.42 lb (190.51 g)
Related Products
BLOWER, 50X50X20MM, 12VDC, 3 WIR
- 1: $16.54000

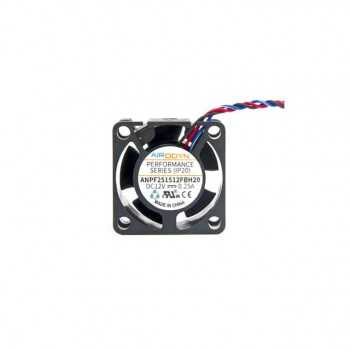

FAN, 25X25X15MM, 12VDC, 3 WIRE,
