3059P-1-503LF

J.W. Miller / Bourns
In Stock: 136

Can ship immediately

Pricing:
  • 1$8.37
  • 20$8.0733
  • 40$7.17626
  • 60$6.57824
  • 100$5.98022
  • 260$4.78418
  • 500$4.63467
  • 1,000$4.33566

Quote It

Technical Details

  • Series:Trimpot® 3059 - Sealed
  • Package:Tube
  • Part Status:Active
  • Resistance:50 kOhms
  • Power (Watts):1W
  • Tolerance:±10%
  • Temperature Coefficient:±100ppm/°C



  • Number of Turns:22
  • Adjustment Type:Side Adjustment
  • Resistive Material:Cermet
  • Mounting Type:Chassis Mount
  • Termination Style:PC Pins
  • Size / Dimension:Rectangular - 0.315" x 0.190" Face x 1.250" L (8.00mm x 4.83mm x 31.75mm)

Related Products


3059P-1-202LF

TRIMMER 2K OHM 1W PC PIN SIDE

3059P-1-202LF Datasheet
  • 1: $8.37000
  • 20: $8.07330
  • 40: $7.17626

3059P-1-502LF

TRIMMER 5K OHM 1W PC PIN SIDE

3059P-1-502LF Datasheet
  • 1: $8.37000
  • 20: $8.07330
  • 40: $7.17626

3059Y-1-201LF

TRIMMER 200 OHM 1W PC PIN SIDE

3059Y-1-201LF Datasheet
  • 1: $8.37000
  • 20: $8.07330
  • 40: $7.17626

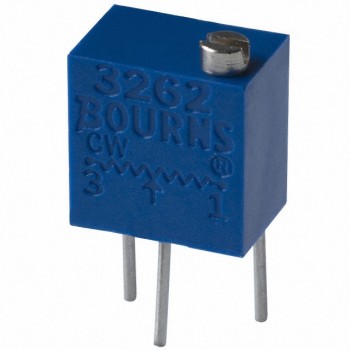

3262W-1-254LF

TRIMMER 250KOHM 0.25W PC PIN TOP

3262W-1-254LF Datasheet
  • 1: $13.52000
  • 10: $12.48000
  • 25: $11.96000

3252W-1-503LF

TRIMMER 50K OHM 0.75W PC PIN TOP

3252W-1-503LF Datasheet
  • 1: $13.65000
  • 10: $12.60000
  • 25: $12.07520

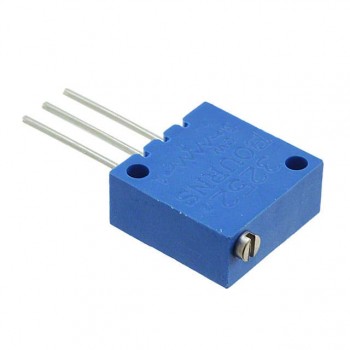

3252W-1-202LF

TRIMMER 2K OHM 0.75W PC PIN TOP

3252W-1-202LF Datasheet
  • 1: $13.65000
  • 10: $12.60000
  • 25: $12.07520

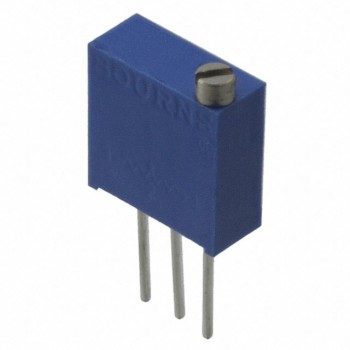

3292W-1-204LF

TRIMMER 200K OHM 0.5W PC PIN TOP

3292W-1-204LF Datasheet
  • 1: $14.66000
  • 10: $13.53600
  • 25: $12.97200

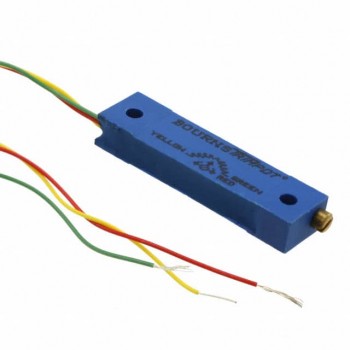

3059L-1-104LF

TRIMMER 100K OHM 1W WIRE LEADS

3059L-1-104LF Datasheet
  • 1: $22.70000
  • 10: $20.88400
  • 25: $17.25200

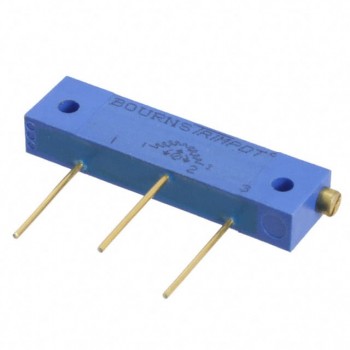

3057Y-1-500

TRIMMER 50 OHM 1W PC PIN SIDE

3057Y-1-500 Datasheet
  • 1: $29.45000
  • 10: $27.60994
  • 30: $22.70123

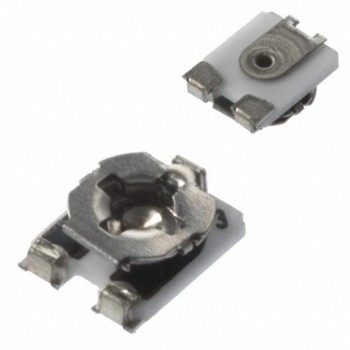

TC33X-1-502E
