SN74HC540PWT
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC BUFFER INVERT 6V 20TSSOP
- CategoryLogic - Buffers, Drivers, Receivers, Transceivers
-
ECAD Model
- Share
In Stock: 1,112
Can ship immediately
Pricing:
- 1$1
- 1,000$0.4305
Quote It
Technical Details
- Series:74HC
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Logic Type:Buffer, Inverting
- Number of Elements:1
- Number of Bits per Element:8
- Input Type:-
- Output Type:3-State
- Current - Output High, Low:7.8mA, 7.8mA
- Voltage - Supply:2V ~ 6V
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:20-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:20-TSSOP
Related Products
BUS DRIVER, ALVT SERIES, 4-BIT
- 1: $0.66000
IC PERIPHERAL DRIVER 5.25V 8SOIC
- 1: $0.66000

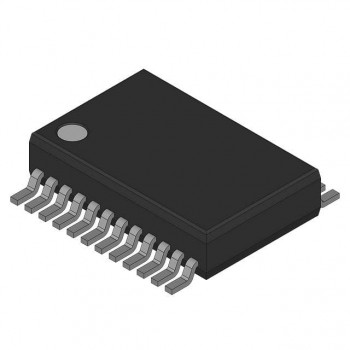

FAST OCTAL REGISTERED TRANSCVR
