MMBTA70LT1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS PNP 40V 100MA SOT23-3
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet MMBTA70LT1G Datasheet
-
ECAD Model
- Share
In Stock: 259,381
Can ship immediately
Pricing:
- 1$0.05
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Transistor Type:PNP
- Current - Collector (Ic) (Max):100 mA
- Voltage - Collector Emitter Breakdown (Max):40 V
- Vce Saturation (Max) @ Ib, Ic:250mV @ 1mA, 10mA
- Current - Collector Cutoff (Max):100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 5mA, 10V
- Power - Max:225 mW
- Frequency - Transition:125MHz
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:SOT-23-3 (TO-236)
Related Products
SMALL SIGNAL BIPOLAR TRANSTR NPN
- 1: $0.05000
PBSS5130QA - 30 V, 1 A PNP LOW V
- 1: $0.05000
SS T092 GP XSTR PNP SPCL
- 1: $0.05000
TRANS PNP 65V 0.1A SOT-323
- 1: $0.05000
BIP PNP 0.15A 50V
- 1: $0.05000
TRANS GP BJT PNP 45V 0.5A
- 1: $0.05000

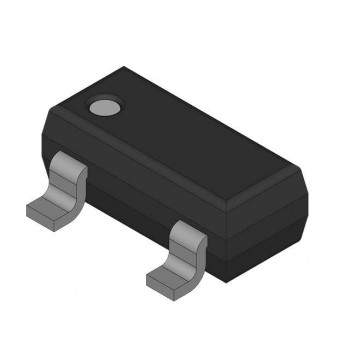

TRANS NPN 40V 0.2A SOT23
- 1: $0.05000

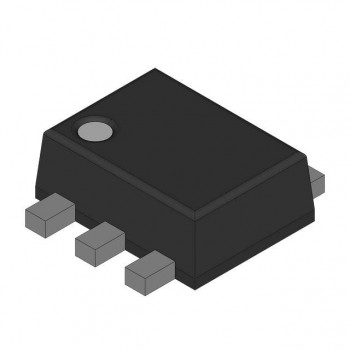

TRANS PREBIAS NPN/PNP SOT563
