2N3905
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSMALL SIGNAL BIPOLAR TRANSISTOR
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet 2N3905 Datasheet
-
ECAD Model
- Share
In Stock: 11,046
Can ship immediately
Pricing:
- 1$0.06
- 10$0.05029
- 25$0.04422
- 100$0.03808
- 250$0.03319
- 500$0.0283
- 1,000$0.02219
- 2,500$0.02035
- 5,000$0.01913
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Transistor Type:PNP
- Current - Collector (Ic) (Max):200 mA
- Voltage - Collector Emitter Breakdown (Max):40 V
- Vce Saturation (Max) @ Ib, Ic:400mV @ 5mA, 50mA
- Current - Collector Cutoff (Max):50nA
- DC Current Gain (hFE) (Min) @ Ic, Vce:50 @ 10mA, 1V
- Power - Max:625 mW
- Frequency - Transition:200MHz
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Through Hole

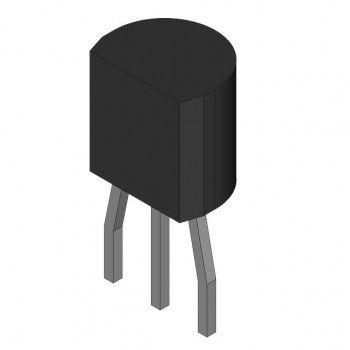

- Package / Case:TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package:TO-92
