2N3904
NTE Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionT-NPN SI-GEN PUR AMP SW
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet 2N3904 Datasheet
-
ECAD Model
- Share
In Stock: 6,760
Can ship immediately
Pricing:
- 1$0.108
- 10$0.07666
- 25$0.06302
- 100$0.05038
- 250$0.03664
- 500$0.02977
- 1,000$0.0229
- 2,500$0.02061
- 5,000$0.01947
Quote It
Technical Details
- Series:-
- Package:Bag
- Part Status:Active
- Transistor Type:NPN
- Current - Collector (Ic) (Max):200 mA
- Voltage - Collector Emitter Breakdown (Max):40 V
- Vce Saturation (Max) @ Ib, Ic:300mV @ 5mA, 50mA
- Current - Collector Cutoff (Max):50nA
- DC Current Gain (hFE) (Min) @ Ic, Vce:30 @ 100mA, 1V
- Power - Max:625 mW
- Frequency - Transition:300MHz
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Through Hole

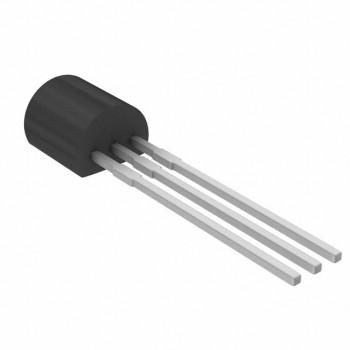

- Package / Case:TO-226-3, TO-92-3 (TO-226AA)
- Supplier Device Package:TO-92
Related Products
TRANS PNP 100V 3A DPAK
- 1: $0.38000

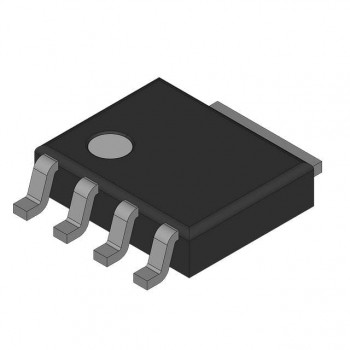

NPNGENERALPURPOSEAMPLIFIERSOT-22
