FSB560
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS NPN 60V 2A 3SSOT
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet FSB560 Datasheet
-
ECAD Model
- Share
In Stock: 300,012,101
Can ship immediately
Pricing:
- 1$0.43
- 3,000$0.43
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Transistor Type:NPN
- Current - Collector (Ic) (Max):2 A
- Voltage - Collector Emitter Breakdown (Max):60 V
- Vce Saturation (Max) @ Ib, Ic:350mV @ 200mA, 2A
- Current - Collector Cutoff (Max):100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 500mA, 2V
- Power - Max:500 mW
- Frequency - Transition:75MHz
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-236-3, SC-59, SOT-23-3
- Supplier Device Package:3-SSOT
Related Products

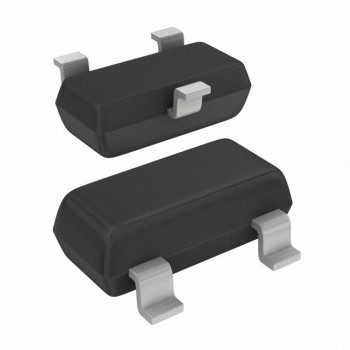

SMALL SIGNAL BIPOLAR TRANSISTOR
- 1: $0.13000

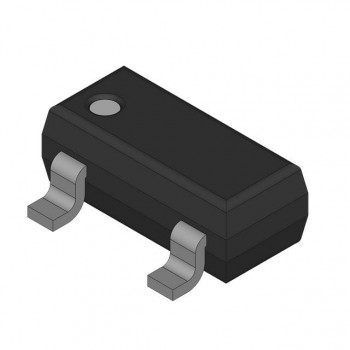

SMALL SIGNAL BIPOLAR TRANSISTOR
