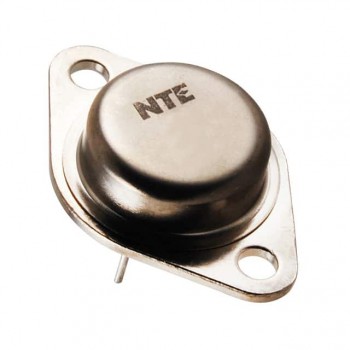

2N6547
NTE Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS NPN 400V 15A TO3
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet 2N6547 Datasheet
-
ECAD Model
- Share
In Stock: 1,028
Can ship immediately
Pricing:
- 1$7.03
- 100$7.03
Quote It
Technical Details
- Series:-
- Package:Bag
- Part Status:Active
- Transistor Type:NPN
- Current - Collector (Ic) (Max):15 A
- Voltage - Collector Emitter Breakdown (Max):400 V
- Vce Saturation (Max) @ Ib, Ic:5V @ 3A, 15A
- Current - Collector Cutoff (Max):1mA
- DC Current Gain (hFE) (Min) @ Ic, Vce:12 @ 5A, 2V
- Power - Max:175 W
- Frequency - Transition:3MHz
- Operating Temperature:200°C (TJ)
- Mounting Type:Chassis Mount
- Package / Case:TO-204AA, TO-3
- Supplier Device Package:TO-3
