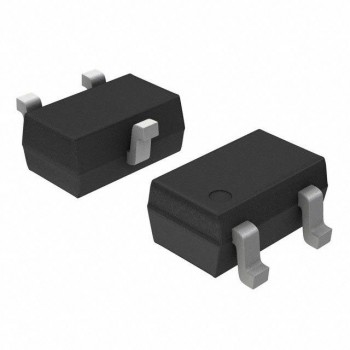

MMBT2222AWT1G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSMALL SIGNAL BIPOLAR TRANSISTOR,
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet MMBT2222AWT1G Datasheet
-
ECAD Model
- Share
In Stock: 3,574,486
Can ship immediately
Pricing:
- 1$0.02
- 3,000$0.00315
- 6,000$0.00285
- 15,000$0.00249
- 30,000$0.00225
- 75,000$0.00201
- 150,000$0.00169
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Transistor Type:NPN
- Current - Collector (Ic) (Max):600 mA
- Voltage - Collector Emitter Breakdown (Max):40 V
- Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
- Current - Collector Cutoff (Max):-
- DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
- Power - Max:150 mW
- Frequency - Transition:300MHz
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SC-70, SOT-323
- Supplier Device Package:SC-70-3 (SOT323)
Related Products

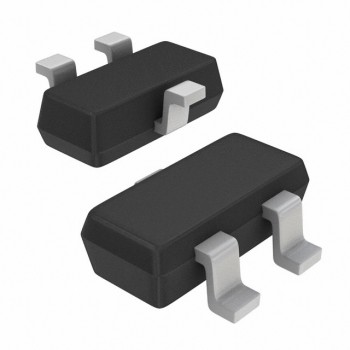

PMBT4403 - PNP SWITCHING TRANSIS
