KSD1589YTU
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS NPN 100V 5A TO220F
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet KSD1589YTU Datasheet
-
ECAD Model
- Share
In Stock: 1,094
Can ship immediately
Pricing:
- 1$0.2
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Transistor Type:NPN - Darlington
- Current - Collector (Ic) (Max):5 A
- Voltage - Collector Emitter Breakdown (Max):100 V
- Vce Saturation (Max) @ Ib, Ic:1.5V @ 3mA, 3A
- Current - Collector Cutoff (Max):1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce:5000 @ 3A, 2V
- Power - Max:1.5 W
- Frequency - Transition:-
- Operating Temperature:150°C (TJ)
- Mounting Type:Through Hole
- Package / Case:TO-220-3 Full Pack
- Supplier Device Package:TO-220F
Related Products

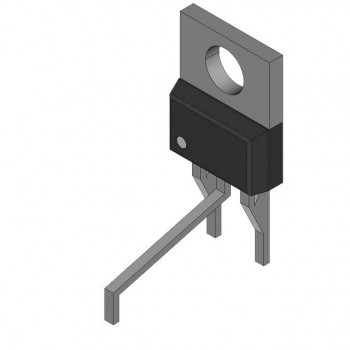

T-PNP SI- AUDIO AMP
- 1: $0.20000
NPN EPITAXIAL PLANAR SILICON
- 1: $0.23000

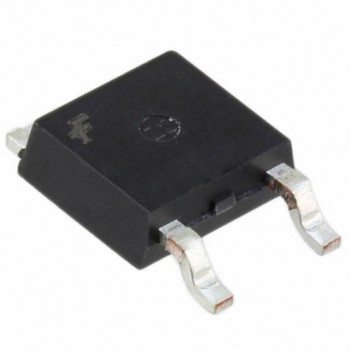

POWER BIPOLAR TRANSISTOR NPN
