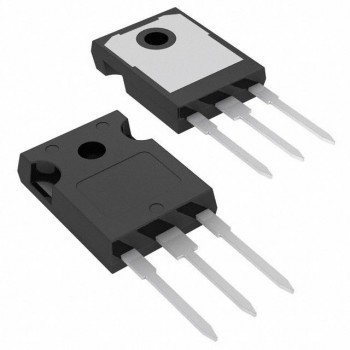

TIP35CG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS NPN 100V 25A TO247
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet TIP35CG Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$2.61
- 30$2.22476
- 120$1.90601
- 510$1.57855
- 1,020$1.32003
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Transistor Type:NPN
- Current - Collector (Ic) (Max):25 A
- Voltage - Collector Emitter Breakdown (Max):100 V
- Vce Saturation (Max) @ Ib, Ic:4V @ 5A, 25A
- Current - Collector Cutoff (Max):1mA
- DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 15A, 4V
- Power - Max:125 W
- Frequency - Transition:3MHz
- Operating Temperature:-65°C ~ 150°C (TJ)
- Mounting Type:Through Hole
- Package / Case:TO-247-3
- Supplier Device Package:TO-247
