MPSA77RLRAG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTRANS PNP DARL 60V 0.5A TO-92
- CategoryTransistors - Bipolar (BJT) - Single
- Datasheet MPSA77RLRAG Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Transistor Type:PNP - Darlington
- Current - Collector (Ic) (Max):500 mA
- Voltage - Collector Emitter Breakdown (Max):60 V
- Vce Saturation (Max) @ Ib, Ic:1.5V @ 100µA, 100mA
- Current - Collector Cutoff (Max):500nA
- DC Current Gain (hFE) (Min) @ Ic, Vce:10000 @ 100mA, 5V
- Power - Max:625 mW
- Frequency - Transition:-
- Operating Temperature:-55°C ~ 150°C (TJ)
- Mounting Type:Through Hole

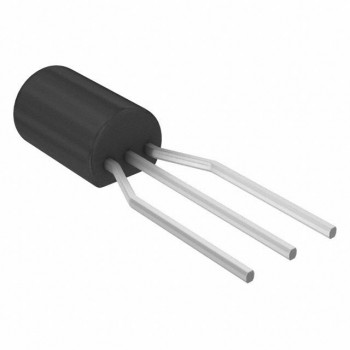

- Package / Case:TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
- Supplier Device Package:TO-92-3
