PZTA14/ZLF

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Transistor Type:NPN - Darlington
• Current - Collector (Ic) (Max):500 mA
• Voltage - Collector Emitter Breakdown (Max):30 V
• Vce Saturation (Max) @ Ib, Ic:1.5V @ 100µA, 100mA
• Current - Collector Cutoff (Max):100nA

• DC Current Gain (hFE) (Min) @ Ic, Vce:20000 @ 100mA, 5V
• Power - Max:1.25 W
• Frequency - Transition:125MHz
• Operating Temperature:150°C (TJ)
• Mounting Type:Surface Mount
• Package / Case:TO-261-4, TO-261AA

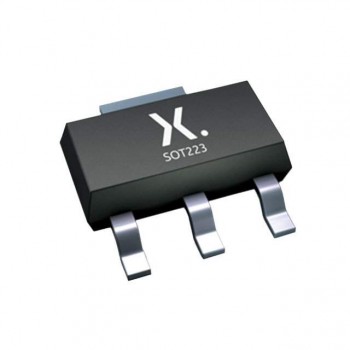

• Supplier Device Package:SOT-223
