346-43-109-41-013000
Mill-Max
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN SOCKET SIP 9POS GOLD
- CategorySockets for ICs, Transistors
- Datasheet 346-43-109-41-013000 Datasheet
-
ECAD Model
- Share
In Stock: 162
Can ship immediately
Pricing:
- 1$1.73
- 10$1.57114
- 25$1.47453
- 50$1.41055
- 100$1.34646
- 250$1.21818
- 500$1.12202
Quote It
Technical Details
- Series:346
- Package:Bulk
- Part Status:Active
- Type:SIP
- Number of Positions or Pins (Grid):9 (1 x 9)
- Pitch - Mating:0.100" (2.54mm)
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Material - Mating:Beryllium Copper
- Mounting Type:Through Hole
- Features:-
- Termination:Press-Fit
- Pitch - Post:0.100" (2.54mm)
- Contact Finish - Post:Tin
- Contact Finish Thickness - Post:200.0µin (5.08µm)
- Contact Material - Post:Brass Alloy
- Housing Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
- Operating Temperature:-55°C ~ 125°C
Related Products

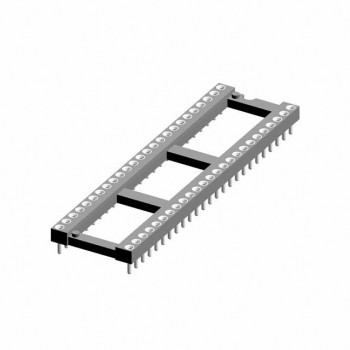

CONN IC DIP SOCKET 50POS GOLD
- 1: $1.74284
- 248: $1.74284

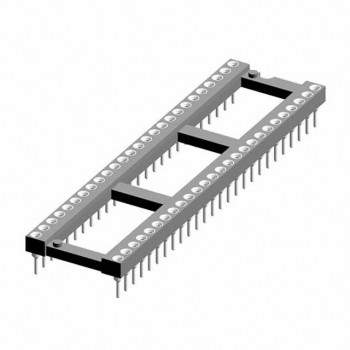

CONN IC DIP SOCKET 52POS GOLD
