22-6823-90
Aries Electronics, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN IC DIP SOCKET 22POS GOLD
- CategorySockets for ICs, Transistors
- Datasheet 22-6823-90 Datasheet
-
ECAD Model
- Share
In Stock: 154
Can ship immediately
Pricing:
- 1$12.36444
- 9$11.24
Quote It
Technical Details
- Series:Vertisockets™ 800
- Package:Bulk
- Part Status:Active
- Type:DIP, 0.6" (15.24mm) Row Spacing
- Number of Positions or Pins (Grid):22 (2 x 11)
- Pitch - Mating:0.100" (2.54mm)
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Material - Mating:Phosphor Bronze
- Mounting Type:Through Hole, Right Angle, Horizontal
- Features:Closed Frame
- Termination:Solder
- Pitch - Post:0.100" (2.54mm)
- Contact Finish - Post:Gold
- Contact Finish Thickness - Post:10.0µin (0.25µm)
- Contact Material - Post:Phosphor Bronze
- Housing Material:Polyamide (PA46), Nylon 4/6
- Operating Temperature:-
Related Products

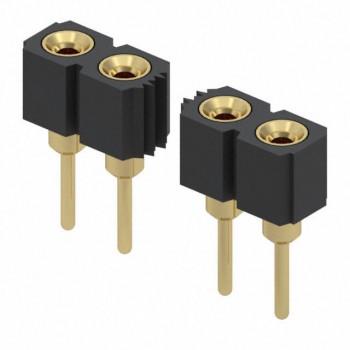

SOCKET SOLDERTAIL SIP 20POS
