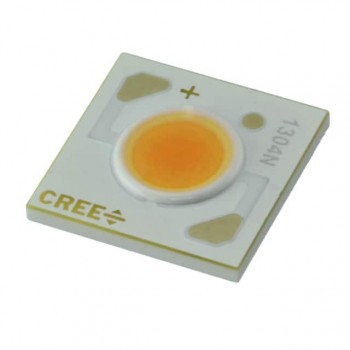

CXA1304-0000-000F0Y8430H
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXA1304 WARM WHT SQUARE
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA1304-0000-000F0Y8430H Datasheet
-
ECAD Model
- Share
In Stock: 143
Can ship immediately
Pricing:
- 1$1.683
- 100$1.683
Quote It
Technical Details
- Series:XLamp® CXA1304
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):3000K 2-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:277lm (268lm ~ 286lm)
- Current - Test:200mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):18V
- Lumens/Watt @ Current - Test:77 lm/W
- Current - Max:500mA
- CRI (Color Rendering Index):93
- Viewing Angle:115°
- Features:-
- Size / Dimension:13.35mm L x 13.35mm W
- Height:1.70mm
- Light Emitting Surface (LES):6.00mm Dia
- Lens Type:Flat
