CXM-9-50-80-36-AC00-F2-3

Luminus Devices
In Stock: 124

Can ship immediately

Pricing:
  • 1$1.68619
  • 2,400$1.68619

Quote It

Technical Details

  • Series:CXM-9
  • Package:Tray
  • Part Status:Not For New Designs
  • Type:Chip On Board (COB)
  • Color:White, Cool
  • CCT (K):5000K 3-Step MacAdam Ellipse
  • Wavelength:-
  • Configuration:Square
  • Luminous Flux @ Current/Temperature:1060lm (Typ)
  • Current - Test:240mA
  • Temperature - Test:85°C



  • Voltage - Forward (Vf) (Typ):35V
  • Lumens/Watt @ Current - Test:126 lm/W
  • Current - Max:530mA
  • CRI (Color Rendering Index):80
  • Viewing Angle:120°
  • Features:-
  • Size / Dimension:13.50mm L x 13.50mm W
  • Height:1.37mm
  • Light Emitting Surface (LES):9.00mm Dia
  • Lens Type:Flat

Related Products


CXM-9-65-80-36-AC00-F2-3

LED COB CXM9 COOL WHITE SQUARE

CXM-9-65-80-36-AC00-F2-3 Datasheet
  • 1: $1.68619
  • 2400: $1.68619

CXM-9-50-90-36-AC00-F2-3

LED COB CXM9 COOL WHITE SQUARE

CXM-9-50-90-36-AC00-F2-3 Datasheet
  • 1: $1.68619
  • 2400: $1.68619

SMJD-1103016C-XXN100A70C038ALL

ECO LINEAR MODULE 280MM 5000K

  • 1: $1.69180

SPHWW1HDN828YHU3CC

LED COB WHT 3500K 3STEP 95CRI

SPHWW1HDN828YHU3CC Datasheet
  • 1: $1.69993
  • 672: $1.69993

SPHWW1HDN828YHV3CC

LED COB WHT 3000K 3STEP 95CRI

SPHWW1HDN828YHV3CC Datasheet
  • 1: $1.69993
  • 672: $1.69993

SPHWW1HDN828YHW3CC

LED COB WHT 2700K 3STEP 95CRI

SPHWW1HDN828YHW3CC Datasheet
  • 1: $1.69993
  • 672: $1.69993

CXB1304-0000-000N0UA427G

LED ARRAY 6MM 2700K 90CRI 355LM

CXB1304-0000-000N0UA427G Datasheet
  • 1: $1.70000
  • 100: $1.70000

CXB1304-0000-000N0UB230G

LED ARRAY 6MM 3000K 90CRI 380LM

CXB1304-0000-000N0UB230G Datasheet
  • 1: $1.70000
  • 100: $1.70000

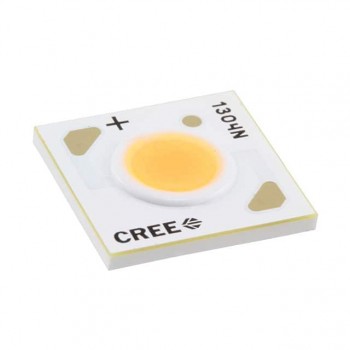

CXB1304-0000-000C0UB235G
