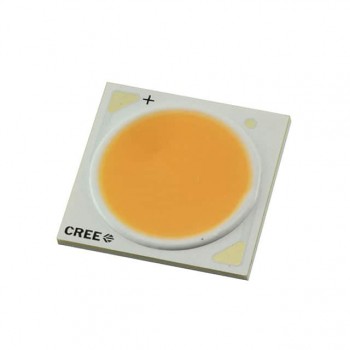

CXA1507-0000-000F0HG440H

Technical Details

• Series:XLamp® CXA1507
• Package:Tray
• Part Status:Active
• Type:Chip On Board (COB)
• Color:White, Neutral
• CCT (K):4000K 2-Step MacAdam Ellipse
• Wavelength:-
• Configuration:Square
• Luminous Flux @ Current/Temperature:870lm (840lm ~ 900lm)
• Current - Test:400mA
• Temperature - Test:85°C

• Voltage - Forward (Vf) (Typ):18V
• Lumens/Watt @ Current - Test:121 lm/W
• Current - Max:750mA
• CRI (Color Rendering Index):80
• Viewing Angle:115°
• Features:-
• Size / Dimension:15.85mm L x 15.85mm W
• Height:1.70mm
• Light Emitting Surface (LES):8.90mm Dia
• Lens Type:Flat
