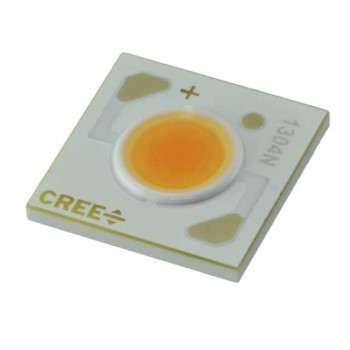

CXA1507-0000-000N0HH20E5
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXA1507 2000K WHITE SMD
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA1507-0000-000N0HH20E5 Datasheet
-
ECAD Model
- Share
In Stock: 161
Can ship immediately
Pricing:
- 1$1.717
- 100$1.717
Quote It
Technical Details
- Series:XLamp® CXA1507
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:935lm (900lm ~ 970lm)
- Current - Test:200mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):36V
- Lumens/Watt @ Current - Test:130 lm/W
- Current - Max:375mA
- CRI (Color Rendering Index):80
- Viewing Angle:115°
- Features:-
- Size / Dimension:15.85mm L x 15.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):8.90mm Dia
- Lens Type:Flat
