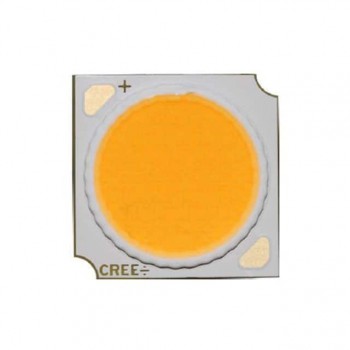

CMA1840-0000-000N0B0A57E
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionXLAMP CMA LIGHT EMITTING DIODE W
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CMA1840-0000-000N0B0A57E Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$8.041
- 100$8.041
Quote It
Technical Details
- Series:XLamp® CMA1840
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Cool
- CCT (K):5700K 5-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:6238lm (Typ)
- Current - Test:1.1A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):34.7V
- Lumens/Watt @ Current - Test:163 lm/W
- Current - Max:2.3A
- CRI (Color Rendering Index):70
- Viewing Angle:115°
- Features:-
- Size / Dimension:17.85mm L x 17.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):14.00mm Dia
- Lens Type:Flat
