CXA2530-0000-000N00S227F
Cree
- Lifecycle status Active
- RoHS RoHS Compliant

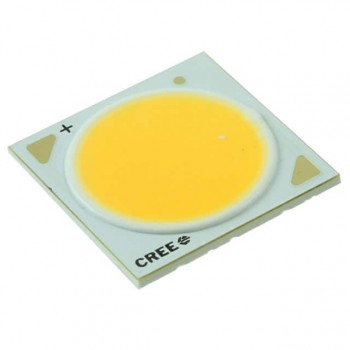

- DescriptionLED XLAMP CXA2530 WHT 19MM
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA2530-0000-000N00S227F Datasheet
-
ECAD Model
- Share
In Stock: 145
Can ship immediately
Pricing:
- 1$8.228
- 100$8.228
Quote It
Technical Details
- Series:XLamp® CXA2530
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):2700K 4-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:2885lm (2780lm ~ 2990lm)
- Current - Test:800mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):37V
- Lumens/Watt @ Current - Test:98 lm/W
- Current - Max:1.6A
- CRI (Color Rendering Index):80
- Viewing Angle:115°
- Features:-
- Size / Dimension:23.85mm L x 23.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):19.00mm Dia
- Lens Type:Flat
