BXRC-35G4000-D-73
Bridgelux, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

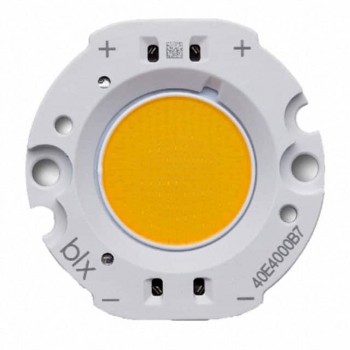

- DescriptionLED COB VERO 18 3500K ROUND
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet BXRC-35G4000-D-73 Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$8.2301
- 100$8.2301
Quote It
Technical Details
- Series:Gen 7 Vero® 18 Array
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):3500K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Round
- Luminous Flux @ Current/Temperature:3640lm (Typ)
- Current - Test:1.05A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):28.3V
- Lumens/Watt @ Current - Test:123 lm/W
- Current - Max:2.1A
- CRI (Color Rendering Index):90
- Viewing Angle:-
- Features:With Connector
- Size / Dimension:36.20mm Dia
- Height:1.90mm
- Light Emitting Surface (LES):18.40mm Dia
- Lens Type:Flat
