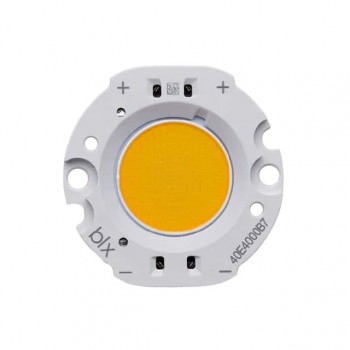

BXRC-35E4000-B-72-SE
Bridgelux, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionVERO SE 18B WARM WHITE LED ARRAY
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet BXRC-35E4000-B-72-SE Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$8.52
- 100$7.94444
Quote It
Technical Details
- Series:Vero® SE 18 Array
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):3500K 2-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Round
- Luminous Flux @ Current/Temperature:4566lm (Typ)
- Current - Test:900mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):33.9V
- Lumens/Watt @ Current - Test:150 lm/W
- Current - Max:3A
- CRI (Color Rendering Index):80
- Viewing Angle:120°
- Features:-
- Size / Dimension:36.20mm Dia
- Height:3.60mm
- Light Emitting Surface (LES):18.40mm Dia
- Lens Type:Flat
