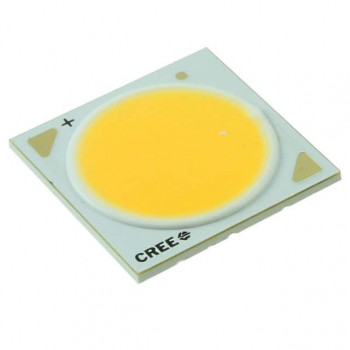

CXA2520-0000-000N0UP40E5
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXA2520 4000K WHITE SMD
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXA2520-0000-000N0UP40E5 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$8.534
- 100$8.534
Quote It
Technical Details
- Series:XLamp® CXA2520
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:2033lm (1965lm ~ 2100lm)
- Current - Test:550mA
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):36V
- Lumens/Watt @ Current - Test:103 lm/W
- Current - Max:1.25A
- CRI (Color Rendering Index):90
- Viewing Angle:115°
- Features:-
- Size / Dimension:23.85mm L x 23.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):19.00mm Dia
- Lens Type:Flat
