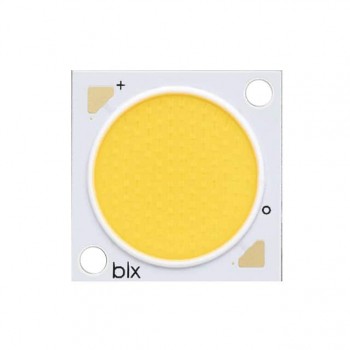

BXRE-40E4000-C-73
Bridgelux, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB V18 4000K SQUARE
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet BXRE-40E4000-C-73 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$8.63002
- 50$8.31802
- 100$7.70187
Quote It
Technical Details
- Series:Gen 7 V18 Array
- Package:Tube
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Neutral
- CCT (K):4000K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:5887lm (Typ)
- Current - Test:1.17A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):34V
- Lumens/Watt @ Current - Test:148 lm/W
- Current - Max:2.34A
- CRI (Color Rendering Index):80
- Viewing Angle:-
- Features:-
- Size / Dimension:24.00mm L x 24.00mm W
- Height:1.70mm
- Light Emitting Surface (LES):19.20mm Dia
- Lens Type:Flat
