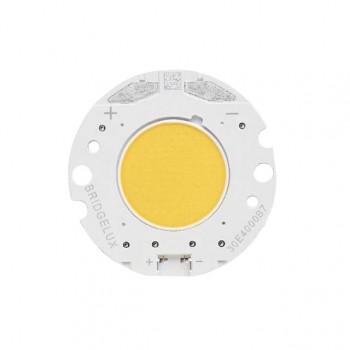

BXRC-40A4001-B-73

Technical Details

• Series:Décor Series™ Class A Vero® 18
• Package:Tray
• Part Status:Active
• Type:Chip On Board (COB)
• Color:White, Neutral
• CCT (K):4000K 3-Step MacAdam Ellipse
• Wavelength:-
• Configuration:Round
• Luminous Flux @ Current/Temperature:3876lm (Typ)
• Current - Test:900mA
• Temperature - Test:85°C

• Voltage - Forward (Vf) (Typ):34.1V
• Lumens/Watt @ Current - Test:126 lm/W
• Current - Max:1.8A
• CRI (Color Rendering Index):93
• Viewing Angle:120°
• Features:With Connector
• Size / Dimension:36.20mm Dia
• Height:1.90mm
• Light Emitting Surface (LES):18.40mm Dia
• Lens Type:Flat
