L2-PGW1-F
Califia Lighting (Bivar)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED WARM WHT 3100K 1500MA
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet L2-PGW1-F Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$8.7371
- 100$8.7371
Quote It
Technical Details
- Series:L2, XLamp® XP-G
- Package:Tray
- Part Status:Active
- Type:LED Module
- Color:White, Warm
- CCT (K):3100K
- Wavelength:-
- Configuration:Starboard
- Luminous Flux @ Current/Temperature:80lm (Typ)
- Current - Test:350mA
- Temperature - Test:70°C
- Voltage - Forward (Vf) (Typ):2.95V
- Lumens/Watt @ Current - Test:77 lm/W
- Current - Max:1.5A
- CRI (Color Rendering Index):80
- Viewing Angle:85°
- Features:With Connector
- Size / Dimension:19.90mm L x 19.90mm W
- Height:8.70mm
- Light Emitting Surface (LES):-
- Lens Type:Flat
Related Products

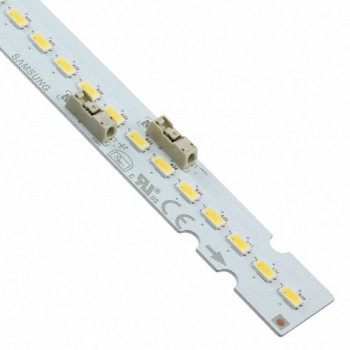

LED SLIM 3500K 2210LM FRONT WIRE
