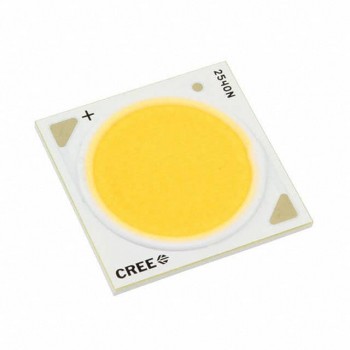

CXB2540-0000-000N0HV427G
Cree
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB CXB2540 2700K WHT SMD
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXB2540-0000-000N0HV427G Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
- 1$10.438
- 100$10.438
Quote It
Technical Details
- Series:Xlamp® CXB2540
- Package:Tray
- Part Status:Active
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):2700K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:4703lm (4545lm ~ 4860lm)
- Current - Test:1.1A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):36V
- Lumens/Watt @ Current - Test:119 lm/W
- Current - Max:2.1A
- CRI (Color Rendering Index):80
- Viewing Angle:115°
- Features:-
- Size / Dimension:23.85mm L x 23.85mm W
- Height:1.70mm
- Light Emitting Surface (LES):19.00mm Dia
- Lens Type:Flat
