BXRE-35E6500-B-73

Bridgelux, Inc.
In Stock: 171

Can ship immediately

Pricing:
  • 1$11.00007
  • 150$11.00007

Quote It

Technical Details

  • Series:Gen 7 V22 Array
  • Package:Tray
  • Part Status:Active
  • Type:Chip On Board (COB)
  • Color:White, Warm
  • CCT (K):3500K 3-Step MacAdam Ellipse
  • Wavelength:-
  • Configuration:Square
  • Luminous Flux @ Current/Temperature:8759lm (Typ)
  • Current - Test:1.17A
  • Temperature - Test:85°C



  • Voltage - Forward (Vf) (Typ):50.7V
  • Lumens/Watt @ Current - Test:148 lm/W
  • Current - Max:2.34A
  • CRI (Color Rendering Index):80
  • Viewing Angle:120°
  • Features:-
  • Size / Dimension:28.00mm L x 28.00mm W
  • Height:1.70mm
  • Light Emitting Surface (LES):22.60mm Dia
  • Lens Type:Flat

Related Products


BXRE-35G6500-B-73

LED COB V22 3500K SQUARE

BXRE-35G6500-B-73 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-40G6500-B-73

LED COB V22 4000K SQUARE

BXRE-40G6500-B-73 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-50E6501-B-74

LED COB V22 5000K SQUARE

BXRE-50E6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-50G6501-B-74

LED COB V22 5000K SQUARE

BXRE-50G6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-57C6501-B-74

LED COB V22 5700K SQUARE

BXRE-57C6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-57E6501-B-74

LED COB V22 5700K SQUARE

BXRE-57E6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-65C6501-B-74

LED COB V22 6500K SQUARE

BXRE-65C6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

BXRE-65E6501-B-74

LED COB V22 6500K SQUARE

BXRE-65E6501-B-74 Datasheet
  • 1: $11.00007
  • 150: $11.00007

CXB1310-0000-000F0HM227H

LED COB XLAMP CXB1310 2700K SQ

CXB1310-0000-000F0HM227H Datasheet
  • 1: $11.01600
  • 100: $11.01600

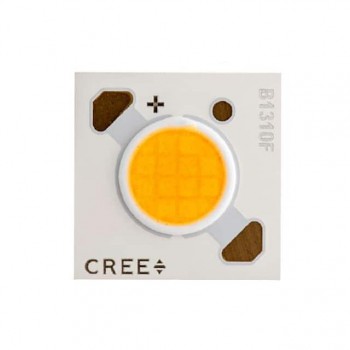

CXB1310-0000-000F0HM430H
