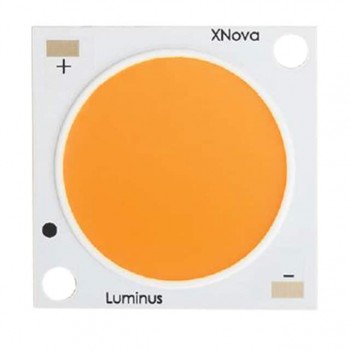

CXM-27-30-95-36-AB00-F2-3
Luminus Devices- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionLED COB
- CategoryLED Lighting - COBs, Engines, Modules, Strips
- Datasheet CXM-27-30-95-36-AB00-F2-3 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$13.35495
- 400$12.94613
Quote It
Technical Details
- Series:CXM-27 GEN1
- Package:Tray
- Part Status:Not For New Designs
- Type:Chip On Board (COB)
- Color:White, Warm
- CCT (K):3000K 3-Step MacAdam Ellipse
- Wavelength:-
- Configuration:Square
- Luminous Flux @ Current/Temperature:5970lm (Typ)
- Current - Test:1.8A
- Temperature - Test:85°C
- Voltage - Forward (Vf) (Typ):35V
- Lumens/Watt @ Current - Test:95 lm/W
- Current - Max:3.6A
- CRI (Color Rendering Index):95
- Viewing Angle:120°
- Features:-
- Size / Dimension:27.89mm L x 27.89mm W
- Height:1.37mm
- Light Emitting Surface (LES):26.42mm Dia
- Lens Type:Flat
