CHM-22-30-80-36-AC02-F2-3

Luminus Devices
In Stock: 153

Can ship immediately

Pricing:
  • 1$13.94663
  • 400$13.5197

Quote It

Technical Details

  • Series:CHM-22
  • Package:Tray
  • Part Status:Not For New Designs
  • Type:Chip On Board (COB)
  • Color:White, Warm
  • CCT (K):3000K 3-Step MacAdam Ellipse
  • Wavelength:-
  • Configuration:Square
  • Luminous Flux @ Current/Temperature:7465lm (Typ)
  • Current - Test:1.92A
  • Temperature - Test:85°C



  • Voltage - Forward (Vf) (Typ):35V
  • Lumens/Watt @ Current - Test:111 lm/W
  • Current - Max:3.8A
  • CRI (Color Rendering Index):80
  • Viewing Angle:120°
  • Features:-
  • Size / Dimension:22.80mm L x 22.80mm W
  • Height:1.37mm
  • Light Emitting Surface (LES):22.00mm Dia
  • Lens Type:Flat

Related Products


CHM-22-30-95-36-AC00-F2-3

LED COB CHM22 WARM WHITE SQUARE

CHM-22-30-95-36-AC00-F2-3 Datasheet
  • 1: $13.94663
  • 400: $13.51970

CHM-22-50-80-36-AC00-F2-3

LED COB CHM22 COOL WHITE SQUARE

CHM-22-50-80-36-AC00-F2-3 Datasheet
  • 1: $13.94663
  • 400: $13.51970

CHM-22-65-80-36-AC00-F2-3

LED COB CHM22 COOL WHITE SQUARE

CHM-22-65-80-36-AC00-F2-3 Datasheet
  • 1: $13.94663
  • 400: $13.51970

CHM-22-50-70-36-AC00-F2-3

LED COB CHM22 COOL WHITE SQUARE

CHM-22-50-70-36-AC00-F2-3 Datasheet
  • 1: $13.94663
  • 400: $13.51970

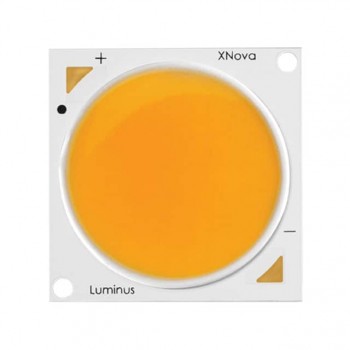

CHM-22-65-70-36-AC00-F2-3
